Product Summary
The PIC16F877A is a 28/40/44-Pin Enhanced Flash Microcontroller.
Parametrics
PIC16F877A absolute maximum ratings: (1)Ambient temperature under bias: -55 to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on any pin with respect to VSS (except VDD, MCLR. and RA4: -0.3V to (VDD + 0.3V); (4)Voltage on VDD with respect to VSS: -0.3 to +7.5V; (5)Voltage on MCLR with respect to VSS: 0 to +14V; (6)Voltage on RA4 with respect to Vss: 0 to +8.5V; (7)Total power dissipation: 1.0W; (8)Maximum current out of VSS pin: 300 mA; (9)Maximum current into VDD pin: 250 mA; (10)Input clamp current, IIK (VI < 0 or VI > VDD): ±20 mA; (11)Output clamp current, IOK (VO < 0 or VO > VDD): ±20 mA; (12)Maximum output current sunk by any I/O pin: 25 mA.
Features
PIC16F877A features: (1)100,000 erase/write cycle Enhanced Flash program memory typical; (2)1,000,000 erase/write cycle Data EEPROM memory typical; (3)Data EEPROM Retention > 40 years; (4)Self-reprogrammable under software control; (5)In-Circuit Serial Programming(ICSP) via two pins; (6)Single-supply 5V In-Circuit Serial Programming; (7)Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation; (8)Programmable code protection; (9)Power saving Sleep mode; (10)Selectable oscillator options; (11)In-Circuit Debug (ICD) via two pins.

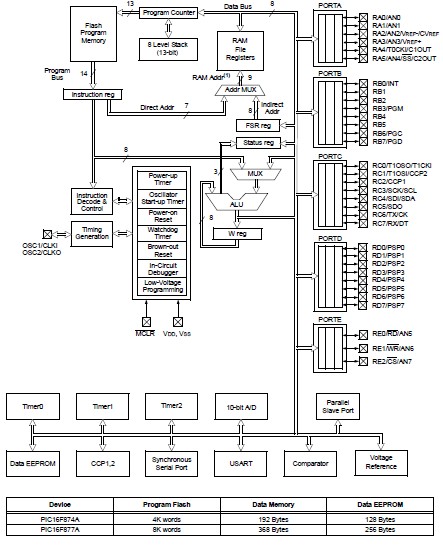

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PIC16F877A |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
PIC16F877A DEV KIT W/PCW |
CCS |
Development Boards & Kits - PIC / DSPIC PIC16F877A EMBD C DEV KIT W/PCW |
Data Sheet |
Negotiable |
|
||||||||||||
|
PIC16F877A DEV KIT W/PCWH |
CCS |
Development Boards & Kits - PIC / DSPIC PIC16F877A EMBD C DEV KIT W/PCWH |
Data Sheet |
Negotiable |
|
||||||||||||
|
PIC16F877A-E/L |
Microchip Technology |
8-bit Microcontrollers (MCU) 14KB 368 RAM 33 I/O |
Data Sheet |
|
|
||||||||||||
|
PIC16F877A DEVELOPMENT BOARD KIT |
|
DEVELOPMENT BOARD FOR PIC16F877A |
Data Sheet |
Negotiable |
|
||||||||||||
|
PIC16F877A DEVELOPMENT KIT |
|
EMBEDDED C DEVELOPMENT KIT |
Data Sheet |
|
|
||||||||||||
|
PIC16F877A-I/P |
Microchip Technology |
8-bit Microcontrollers (MCU) 14KB 368 RAM 33 I/O |
Data Sheet |
|
|
||||||||||||
|
PIC16F877A-E/P |
Microchip Technology |
8-bit Microcontrollers (MCU) 14KB 368 RAM 33 I/O |
Data Sheet |
|
|
||||||||||||
