Product Summary

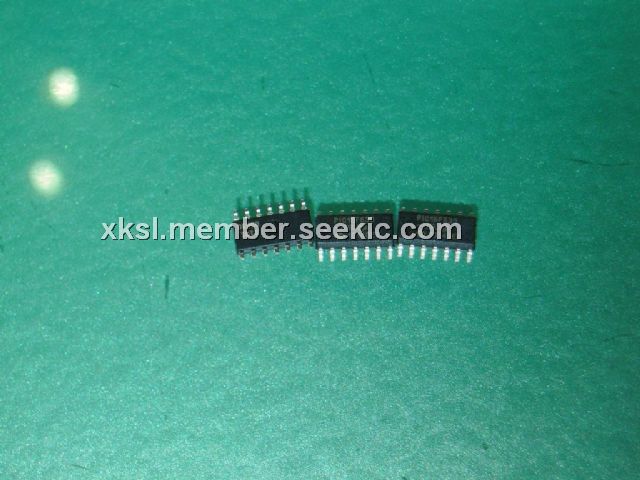

This document contains device specific information for the PIC16F630. Additional information may be found in the PICmicroTM Mid-Range Reference Manual (DS33023), which may be obtained from your local Microchip Sales Representative or downloaded from the Microchip web site. The Reference Manual should be considered a complementary document to this Data Sheet and is highly recommended reading for a better understanding of the device architecture and operation of the peripheral modules. The PIC16F630 device is covered by this Data Sheet. It is identical. PIC16F630 comes in 14-pin PDIP, SOIC and TSSOP packages.
Parametrics
PIC16F630 absolute maximum ratings: (1)Ambient temperature under bias: -40 to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on VDD with respect to VSS: -0.3 to +6.5V; (4)Voltage on MCLR with respect to Vss: -0.3 to +13.5V; (5)Voltage on all other pins with respect to VSS: -0.3V to (VDD + 0.3V); (6)Total power dissipation: 800 mW; (7)Maximum current out of VSS pin: 300 mA; (8)Maximum current into VDD pin: 250 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD): ± 20 mA; (10)Output clamp current, IOK (Vo < 0 or Vo >VDD): ± 20 mA; (11)Maximum output current sunk by any I/O pin: 25 mA; (12)Maximum output current sourced by any I/O pin: 25 mA; (13)Maximum current sunk by PORTA and PORTC (combined): 200 mA; (14)Maximum current sourced PORTA and PORTC (combined): 200 mA.
Features
PIC16F630 features: (1)Interrupt capability; (2)8-level deep hardware stack; (3)Direct, Indirect, and Relative Addressing modes; (4)Power saving SLEEP mode; (5)Wide operating voltage range: - 2.0V to 5.5V; (6)Industrial and Extended temperature range; (7)Low power Power-on Reset (POR); (8)Interrupt-on-pin change; (9)Individual programmable weak pull-ups; (10)Programmable code protection.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PIC16F630 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
PIC16F630-C/P |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
PIC16F630-E/P |
Microchip Technology |
8-bit Microcontrollers (MCU) 1.75KB 64 RAM 12 I/O Ext Temp PDIP14 |
Data Sheet |
|
|
||||||||||||
|
PIC16F630-E/SL |
Microchip Technology |
8-bit Microcontrollers (MCU) 1.75KB 64 RAM 12 I/O Ext Temp SOIC14 |
Data Sheet |
|
|
||||||||||||
|
PIC16F630-E/ML |
Microchip Technology |
8-bit Microcontrollers (MCU) 1.75KB 64 RAM 12I/O Ext Temp QFN |
Data Sheet |
|
|
||||||||||||
|
PIC16F630-C/SL |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
PIC16F630-I/P |
Microchip Technology |
8-bit Microcontrollers (MCU) 1.75KB 64 RAM 12 I/O Ind Temp PDIP14 |
Data Sheet |
|
|
||||||||||||
|
PIC16F630-I/ST |
Microchip Technology |
8-bit Microcontrollers (MCU) 1.75KB 64 RAM 12 I/O Ind Temp TSSOP14 |
Data Sheet |
|
|
||||||||||||
