Product Summary

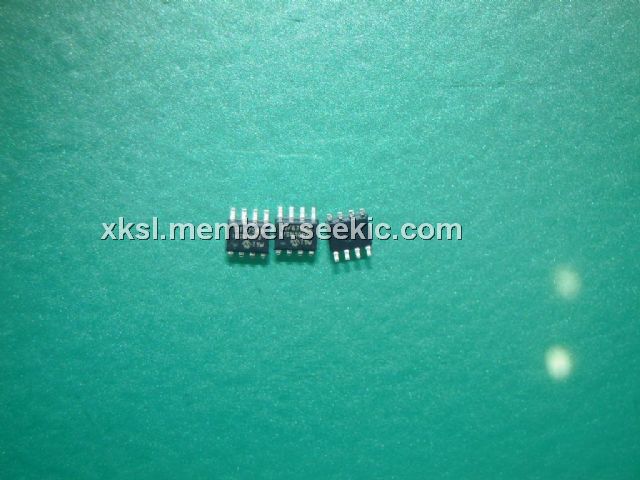

The PIC12F675-I/SN is a 8-Pin, Flash-Based 8-Bit CMOS Microcontroller.
Parametrics
PIC12F675-I/SN absolute maximum ratings: (1)Ambient temperature under bias: -40℃ to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on any pin with respect to VSS (except VDD and MCLR): -0.3V to (VDD + 0.3V); (4)Voltage on VDD with respect to VSS: -0.3V to +7.5V; (5)Voltage on MCLR with respect to VSS (Note 2): 0V to +13.25V; (6)Voltage on RA4 with respect to VSS: 0V to +8.5V; (7)Total power dissipation: 1.0W; (8)Maximum current out of VSS pin: 300 mA; (9)Maximum current into VDD pin: 250 mA; (10)Input clamp current, IIK (VI < 0 or VI > VDD): ±20 mA; (11)Output clamp current, IOK (VO < 0 or VO > VDD): ±20 mA; (12)Maximum output current sunk by any I/O pin: 25 mA; (13)Maximum output current sourced by any I/O pin: 25 mA; (14)Maximum current sunk by all ports: 125 mA; (15)Maximum current sourced by all ports: 125 mA.
Features
PIC12F675-I/SN features: (1)Power-Saving Sleep mode; (2)Wide Operating Voltage Range 2.0V to 5.5V; (3)Industrial and Extended Temperature Range; (4)Low-Power Power-on Reset (POR); (5)Power-up Timer (PWRT) and Oscillator Start-up Timer (OST); (6)Brown-out Detect (BOD); (7)Watchdog Timer (WDT) with Independent Oscillator for Reliable Operation; (8)Multiplexed MCLR/Input Pin; (9)Interrupt-on-Pin Change; (10)Individual Programmable Weak Pull-ups; (11)Programmable Code Protection; (12)High Endurance Flash/EEPROM Cell.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PIC12F675-I/SN |
Microchip Technology |
8-bit Microcontrollers (MCU) 1.75KB 64 RAM 6 I/O Ind Temp SOIC8 |
Data Sheet |
|
|
||||||||||||
|
PIC12F675-I/SNG |
Microchip Technology |
8-bit Microcontrollers (MCU) 1.75KB 64 RAM 6 I/O |
Data Sheet |
Negotiable |
|
||||||||||||
